Arduino Based Remote Control Helicopter

Arduino Based Remote Control Helicopter

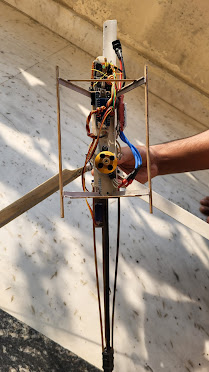

Hay....everyone...this is first flight testing video of the arduino helicopter V8...which has a 1axis gyro for the tail/yaw servo..and also a arduino based 10 channel PWM receiver. The gyro is basically includes a arduino nano and a mpu6050 6dof gyro.

SCL and SDA pin of mpu6050 is connected with arduino nano A4 and A5 , Yaw channel PWM input is givem through arduino nano A2 pin and A4 is used for Yaw servo output.


Arduino Code link --https://mode-zero.uk/download/file.ph...

Arduino helicopter electronics discussion video link -    • Scratch built Rc Helicopter Basic Ele...


Arduino helicopter electronics discussion video link -    • Scratch built Rc Helicopter Basic Ele...
